PRL Motorsports Billet FMIC Upgrade for Honda Civic Type R FK8 (2017–2021)

Description

Fitment Notes:

• FITS ALL 2017+ HONDA CIVIC TYPE-R MODELS INCLUDING RHD, INTERNATIONAL MODELS, ETC
• FITS FACTORY CHARGE PIPING OR PAIR WITH OUR CHARGE PIPE UPGRADE KIT FOR OPTIMAL PERFORMANCE

Important Notes:

• DOES NOT REQUIRE TUNE
• CURRENT DESIGN RETAINS FACTORY INTERCOOLER BOLTS & HARDWARE
• 50 State Legal CARB Approved: EO D-878
• INTERCOOLER TORQUE SPEC: 18 ft/lb

Technical Notes:

It’s no secret that Honda’s 2.0L turbo Civic is extremely susceptible to heat-soak, especially when retaining the factory intercooler. Excessive heat-soak increases the risk of detonation and causes major power-loss due to high charge air and cylinder temperatures. These issues become even more prevalent with spirited driving and/or increased power outputs.

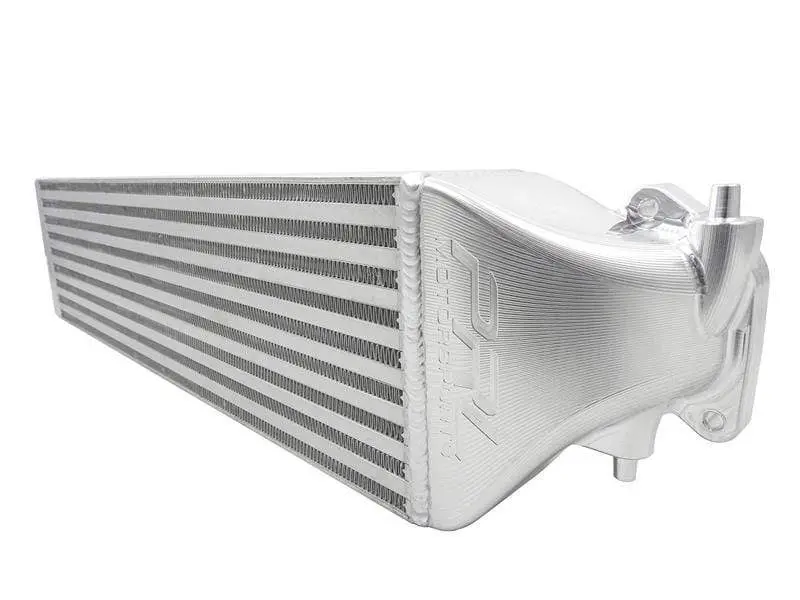

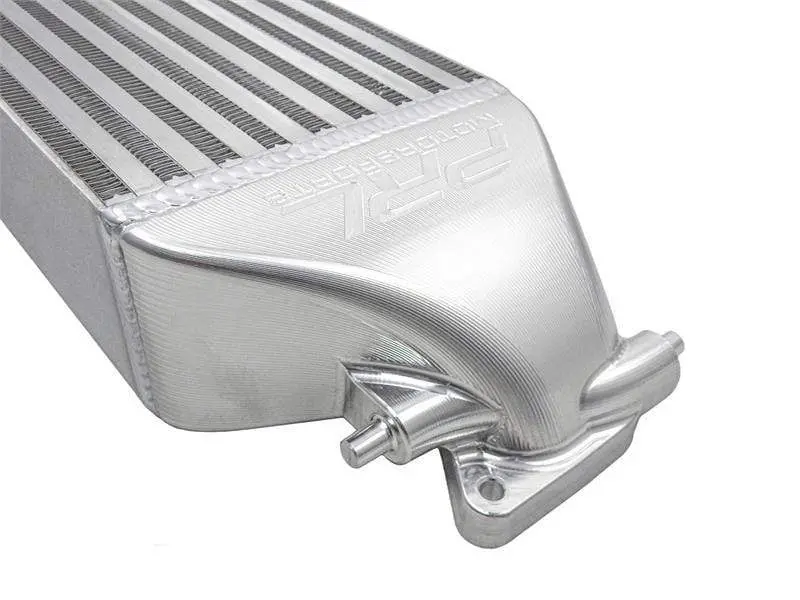

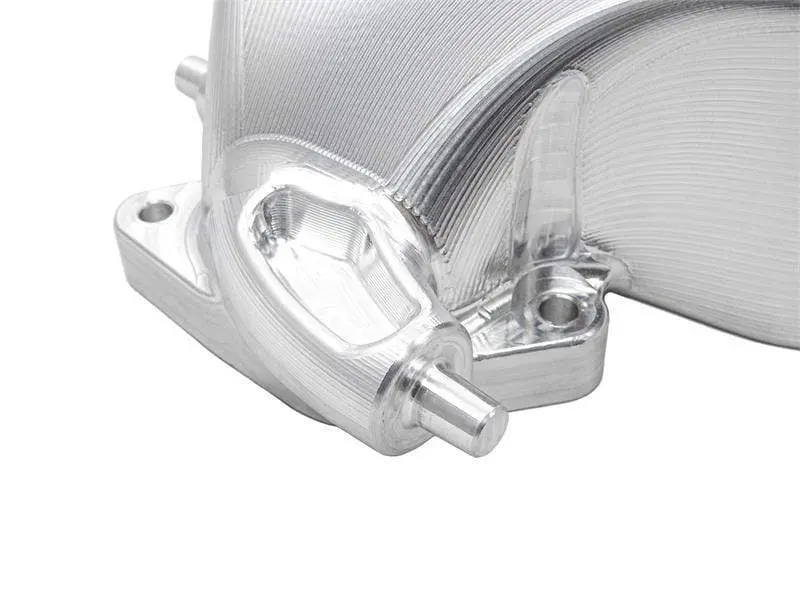

The PRL Motorsports intercooler upgrade decreases charge air temperatures while increasing potential airflow with its dense 26.5 x 3.5 x 7.25″ 550+ horsepower rated bar-and-plate core. Our intercooler core which increases surface area by 85% and internal flow by 83% to allow optimal cooling and airflow. Billet machined aluminum end tanks maximize efficiency while looking as smooth as they flow!

This intercooler utilizes factory mounting spots with our billet machined end tanks as well as all factory air ducts/shrouds. To maintain consistency with most of our PRL product line, no cutting, fitting or trimming is required. Kits will come with all hardware needed for a seamless install.

Kit Includes:

• (1) Intercooler Assembly
• (1) Cardboard Stencil w/ “PRL” Logo
• (2) Buna O-Ring

Performance Gains:

• Increased turbocharger spool
• 3 horsepower & 11 ft/lb torque gains by simply bolting on
• Major mid-range power gains
• 50+ F degree drop in post charge air temperature at peak
• Average of 32 F degree drop in post charge air temperature
• Increased efficiency & consistency in power delivery
• Increased engine safety
